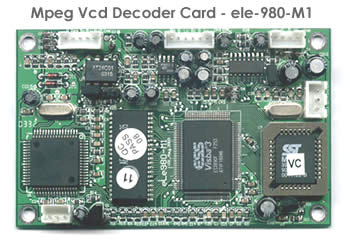

ele-980-M1 - MPEG VCD Card for car
Features:
  • Build in/out VCD card for car
  • NTSC/PAL system
  • Remote control function
Enhanced Functions:
  • Video system preset (on power):
    PAL: J1 Pin1-Pin2 open;
    NTSC: J1 Pin1-Pin2 close.
  • Audio switch preset (on power):
    CD audio (out audio): J2 Pin1-Pin2 open;
    VCD audio:J2 Pin1-Pin2 close.
  • VCD video select:
    switch: J3 Pin1-Pin2 open;
    Output directly: J3 Pin1-Pin2 close. (VCD video output directly to the socket)
Datasheet:

DOWNLOAD

Additional:
  • Power Supply Card to be used with ele-980-M1
