ele-680-A2 - Vcd Mpeg Card
Features:
  • Extremely small and thin design thus making it ideal for mounting.
  • CL680 & SAA7345: High quality and super error correction.
  • Operates with DC +5V.

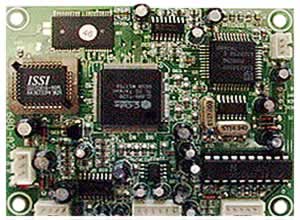

Figure 1: ele-680-A2 Video CD MPEG Card

Enhanced Functions: (see below - Figure 2 & Figure 3)
  • A) Start on logo OSD.
  • B) Only with RF signal output, convenient for operating
  • C) Remote Control (NEC Form) which includes Disc View, Slow, PAL / NTSC change, LL / RR / Stereo / Wide, Volume, Key+ and Key-.
  • D) J3: Pin 4 and 5 open for PAL while close for NTSC.

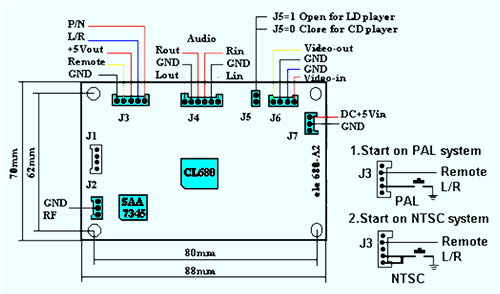

Figure 2: Jumpers Layout of ele-680-A2 Video CD MPEG Card

Figure 3: ele-680-A2 Video CD MPEG Card linked with LC/VCD Player
